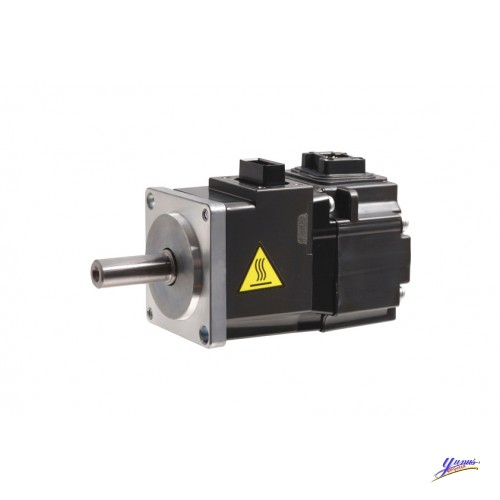

Mitsubishi HG-KR053B Servo Motor
SERVO MOTOR
| Type | HG-KR |
| Rated Capacity (kW) | 0,05 |
| Rated Torque (Nm) | 0,16 |
| Maximum Torque (Nm) | 0,56 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 6000 |
| Inertia (kg*cm2) | 0,0472 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP65 |
| Power Supply (V) | 200 |
| Current Type | AC |
| Encoder Type | ABSOLUTE/INCREMENTAL |
| Encoder Resolution (p/rev) | 4194304 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 40 |
| Height (mm) | 41,7 |
| Depth (mm) | 107 |
| Weight (kg) | 0,54 |
ORDER CODES
| European Order Code | 248656 |
| Global Order Code | 0JC051 |
CLASSIFICATION DATA
| Product hierarchy | IAK30220 |
| Class Description | FA-Servo-Motion: Servo Motor |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | B |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.664 KG |
| Volume | 2.677 CDM |
| Length | 24,5 CM |
| Width | 11,5 CM |
| Height | 9,5 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85015100 |
| Country of Origin | JP |
LIFE CYCLE
| Predecessor | 160213 |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi HG-KR053B Servo Motor
- Brand: Mitsubishi
- Product Code: HG-KR053B
- Availability: 10
-
$1,000.00
- Ex Tax: $1,000.00
