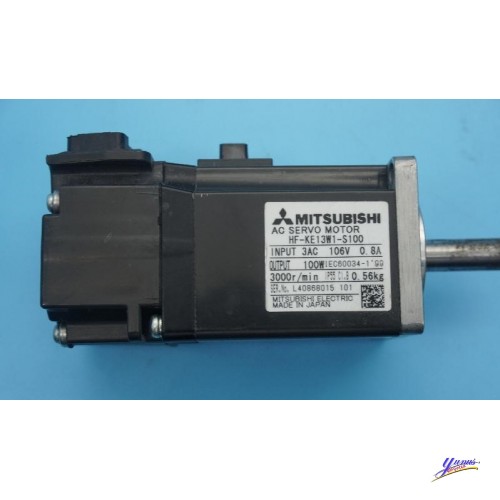

Mitsubishi HF-KE13W1-S Servo Motor
TECHNICAL INFORMATION
SERVO MOTOR
| Type | HF-KE |
| Rated Torque (Nm) | 0,32 |
| Maximum Torque (Nm) | 0,95 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 4500 |
| Inertia (kg*cm2) | 0,088 |
| Brake | NO |
| Protection Class | IP55 |
| Power Supply (V) | 200 |
| Current Type | AC |
| Encoder Resolution (p/rev) | 131072 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 40 |
| Height (mm) | 40 |
| Depth (mm) | 82,4 |
| Weight (kg) | 0,56 |
ADDITIONAL INFORMATION
ORDER CODES
| European Order Code | 210940 |
| Global Order Code | 0HW991-00102B |
CLASSIFICATION DATA
| Product hierarchy | IAK30216 |
| Class Description | FA-Servo-Motion: Servo Motor |
| External Material Group | Discontinued Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.63 KG |
| Volume | 2.376 CDM |
| Length | 11 CM |
| Width | 24 CM |
| Height | 9 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85015100 |
| Country of Origin | JP |
LIFE CYCLE
| Predecessor | 70404 |
| Discontinued (EOL) | 31.03.2013 |
| Last Time Buy (LTB) | 31.03.2013 |
| End of Service (EOS) | 31.12.2019 |
| Successor | 239797 HF-KN13 |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi HF-KE13W1-S Servo Motor
- Brand: Mitsubishi
- Product Code: HF-KE13W1-S
- Availability: 10
-
$1,000.00
- Ex Tax: $1,000.00
