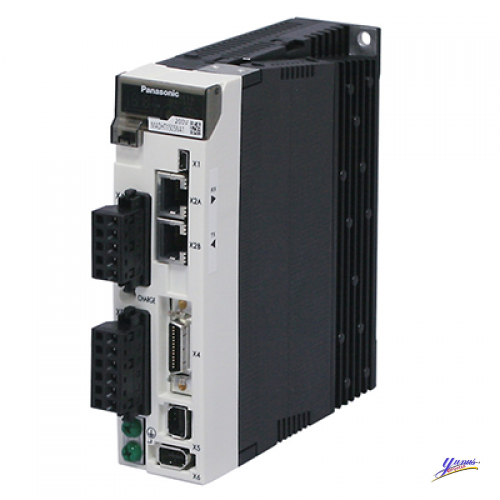

Panasonic MINAS A5 Family MADHT1107E Servo Driver
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MADHT1107E |
| Details | A5E series Position control type without the safety function |
| Family Name | MINAS A5 |
| Series | A5E series |
| Type | Position control type |
| Frame | A-Frame |
| Frequency response | 2.3 kHz |
| Control method | Position control |
| Safety Function | without |
| Power device Max. current rating | 10A |
| Current detector current rating | 7.5A |
| Supply voltage | Single phase 100 V |
| I/F Classification of type | Analog/Pulse |
| Dimensions (W) (Unit: mm) | 40 |
| Dimensions (H) (Unit: mm) | 150 |
| Dimensions (D) (Unit: mm) | 130 |
| Mass (kg) | 0.8 |
| Environment | For more details, please refer to the instruction manual. |
Basic Specifications
| Item | Specifications |
|---|---|
| Input power: Main circuit | Single phase 100 to 120V +10% -15% 50/60 Hz |
| Input power: Control circuit | Single phase 100 to 120V +10% -15% 50/60 Hz |
| Encoder feedback | 20-bit (1048576 resolution) incremental encoder, 5-wire serial |
| Parallel I/O connector: Control signal Input | General purpose 10 inputs The function of general-purpose input is selected by parameters. |
| Parallel I/O connector: Control signal Output | General purpose 6 output The function of general-purpose output is selected by parameters. |
| Parallel I/O connector: Analog signal Output | 2 outputs (Analog monitor: 2 output) |
| Parallel I/O connector: Pulse signal Input | 2 inputs (Photo-coupler input, Line receiver input) |
| Parallel I/O connector: Pulse signal Output | 4 outputs (Line driver: 3 output, open collector: 1 output) |
| Communication function | USB |
| Communication function: USB | USB interface to connect to computers for parameter setting or status monitoring. |
| Regeneration | No built-in regenerative resistor (external resistor only) |
| Control mode | Switching among the following 3 mode is enabled, (1) Position control, (2) Internal velocity command, (3) Position/Internal velocity command |
Panasonic MINAS A5 MADHT1107E Servo Driver
- Brand: Panasonic
- Product Code: MADHT1107E
- Availability: 10
-
$1,000.00
- Ex Tax: $1,000.00
Tags: MADHT1107E
