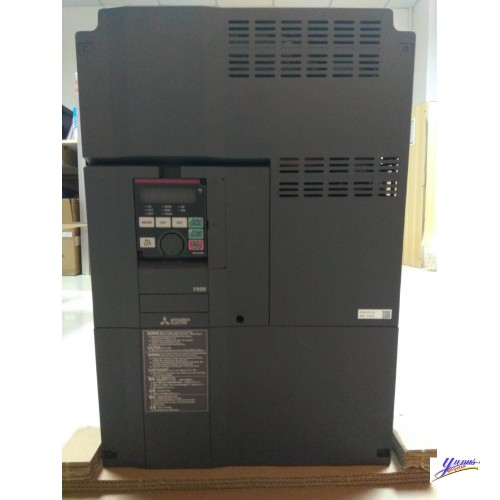

Mitsubishi FR-F846-00470-E2-60L2 Inverter AC; Pn: 22kW; 3x380-500V;In max: 43A; IP55
INVERTER
| Type | FR-F800 PUMP AND FAN |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current SLD (A) | 47 |
| Rated Output Current LD (A) | 43 |
| Rated Motor Capacity SLD (kW) | 22 |
| Rated Motor Capacity LD (kW) | 22 |
| Control Method | ADVANCED MAGN. FLUX VEC. CTRL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| Type of Terminal Block | PLUG |
| Expandable | YES |
| USB | 2 |
| Built-In Network | CC-LINK IE FIELD BASIC, SLMP, |
| Protection Class | IP55 |
| Power Loss (W) | 565 |
| Standby Power Consumption (W) | 20 |
| Leakage Current (mA) | 2 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 238 |
| Height (mm) | 650 |
| Depth (mm) | 285 |
| Weight (kg) | 27 |
ORDER CODES
| European Order Code | 318066 |
| Global Order Code | 1AB991-0000CV |
CLASSIFICATION DATA
| Product hierarchy | IAK245 |
| Class Description | FA-Inverter: Inverter |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | A |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 34 KG |
| Volume | 126.984 CDM |
| Length | 37 CM |
| Width | 71,5 CM |
| Height | 48 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85371091 |
| Country of Origin | JP |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi FR-F846-00470-E2-60L2 Inverter
- Brand: Mitsubishi
- Product Code: FR-F846-00470-E2-60L2
- Availability: 10
-
$1,000.00
- Ex Tax: $1,000.00
